Black NBR Marine Exhaust Hose SAE J2006 R1 Certificate

Large Image : Black NBR Marine Exhaust Hose SAE J2006 R1 Certificate

Product Details:

Place of Origin:	CHINA
Brand Name:	LETONE
Certification:	SAE J2006 R1
Model Number:	LT1204

Payment & Shipping Terms:

Minimum Order Quantity:	100 Meter
Price:	10USD-100USD
Packaging Details:	Plastic stretch film or wooden box
Delivery Time:	Within a month
Payment Terms:	T/T
Supply Ability:	Annual output of 1000,000 meters

Contact Now

Black NBR Marine Exhaust Hose SAE J2006 R1 Certificate

Description

Tube:	Black NBR	Applications:	Marine Wet Exhaust And Bilge Pump Connections
Cover:	Black NBR/PVC Blend-abrasion, Ozone And Hydrocarbon Resistant	Working Pressure:	Constant Pressure-5 Bar(75 PSI)
Temperature Range:	-20℃(-40°F)to +100℃(+212°F)	Reinforcement:	High Tensile Textile Cords
High Light:	NBR Marine Exhaust Hose , SAE J2006 R1 Marine Exhaust Hose , NBR marine exhaust tubing

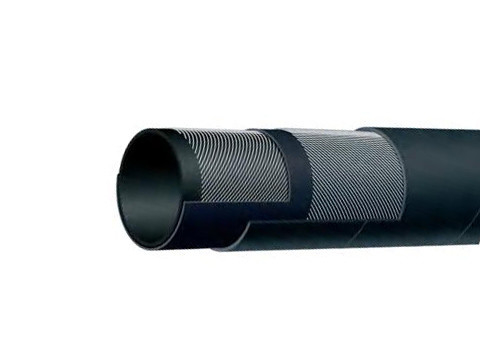

LT1204 Marine Exhaust Hose- SAE J2006 R1

Quick Detail:

Applications:Marine wet exhaust and bilge pump connections

Tuber:Black NBR

Reinforcement:High tensile textile cords

Cover:Black NBR/PVC blend-abrasion, ozone and hydrocarbon resistant

Working Pressure:Constant Pressure-5 Bar(75 psi)

Temperature Range:--30℃(-22°F)to +100℃(+212°F)

Specifications:

Parameter

Specifications
Series	I.D.(in.)	I.D. (mm)	O.D. (in.)	O.D. (mm)	Max.W.P.(psi)	W. (kg/m)
LT1204-100	1	25	1.38	35	75	0.64
LT1204-112	11/8	28	1.50	38	75	0.70
LT1204-125	11/4	32	1.65	42	75	0.77
LT1204-137	13/8	35	1.77	45	75	0.83
LT1204-150	11/2	38	1.89	48	75	0.91
LT1204-162	15/8	42	2.05	52	75	0.98
LT1204-175	13/4	45	2.17	55	75	1.04
LT1204-189	17/8	48	2.28	58	75	1.12
LT1204-200	2	51	2.48	63	75	1.44
LT1204-225	21/4	57	2.72	69	75	1.59
LT1204-238	23/8	60	2.91	74	75	1.95
LT1204-250	21/2	63	3.03	77	75	2.04
LT1204-300	3	76	3.54	90	75	2.44
LT1204-350	31/2	90	4.09	104	75	2.90
LT1204-400	4	102	4.57	116	75	3.24
LT1204-450	41/2	115	5.08	129	75	3.62
LT1204-500	5	127	5.55	141	75	3.99
LT1204-600	6	152	6.61	168	75	4.85
LT1204-662	65/8	168	7.24	184	75	5.31
LT1204-800	8	203	8.70	221	75	7.38

Competitive Advantage:
