Product Details:
|

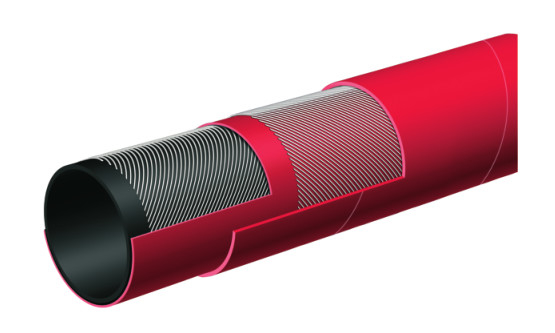

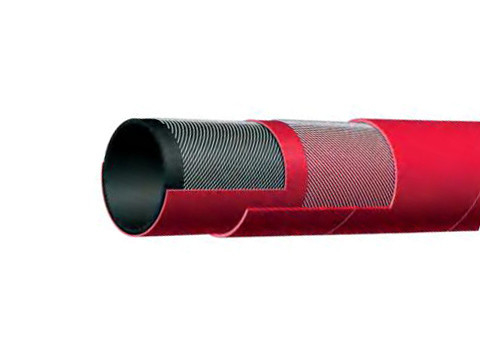

| Tube: | Black Conductive NBR | Applications: | Oil Discharge Hose Designed For Use On Trucks, Docks Or Barges Where A Soft Wall Hose Is Required |
|---|---|---|---|
| Cover: | Red CR-abrasion, Ozone And Hydrocarbon Resistant | Working Pressure: | Constant Pressure-10Bar(150PSI) |
| Temperature Range: | -30℃(-22°F)to +80℃(+176°F). | Reinforcement: | Spiralled High Tensile Textile Cords With Embedded Static Wire |
| High Light: | 150PSI Oil Discharge Hose,NBR Oil Discharge Hose,NBR Suction And Discharge Hose |
||
| Specifications | ||||||
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | Max.W.P.(psi) | W. (kg/m) |
| LT1215-150 | 11/2 | 38 | 1.89 | 48 | 150 | 0.92 |
| LT1215-200 | 2 | 51 | 2.40 | 61 | 150 | 1.22 |
| LT1215-300 | 3 | 76 | 3.46 | 88 | 150 | 2.11 |
| LT1215-400 | 4 | 102 | 4.49 | 114 | 150 | 2.86 |
Competitive Advantage:
Contact Person: Mr. frank
Tel: 86-18736438639
