Product Details:
|

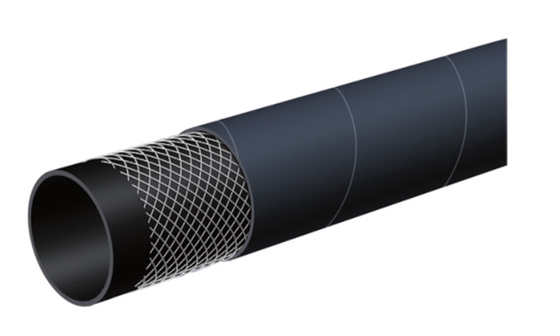

| Inner Tube: | Black SBR Rubber | Reinforcement: | High Tension Textile Cord |
|---|---|---|---|
| Cover: | Black SBR Rubber, Wear Resistant, Oxidation Resistant | Working Pressure: | Constant Pressure 10Bar (150PSI) |
| Temperature Range: | - 30 ℃ - 22 ° F) And + 80 ℃ (+ 176 ° F) | Application: | Suction Hose For Construction And Irrigation |
| High Light: | SBR Rubber Suction Hose,150PSI Rubber Suction Hose,SBR suction and discharge hose |
||
Temperature range:-30°C (-22°F) to +80°C (+176°F)
Application:suction hose for construction and irrigation
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | MaxRec.W.P. (PSI) | Weight (kg/m) |
| LT904-150 | 11/2 | 38 | 1.89 | 48 | 150 | 0.98 |
| LT904-200 | 2 | 51 | 2.40 | 61 | 150 | 1.29 |
| LT904-300 | 3 | 76 | 3.46 | 88 | 150 | 2.29 |
| LT904-400 | 4 | 102 | 4.49 | 114 | 150 | 3.10 |
| LT904-600 | 6 | 152 | 6.54 | 166 | 150 | 4.66 |
| LT904-800 | 8 | 203 | 8.62 | 219 | 150 | 6.90 |
