Product Details:
|
| Features: | Small Volume Expansion Under Pressure | Hose Inside Diameter: | 6.3mm - 51.0mm |
|---|---|---|---|
| Material: | Steel Wire | Hose Type: | Spiral |
| High Pressure: | Exceed The SAE Standard By 60% | Standard: | ISO18752-DC Standard |
| Tube: | Inner Tube Of NBR Tube | Reinforcement: | Four-layer Steel Wire Winding Layer |

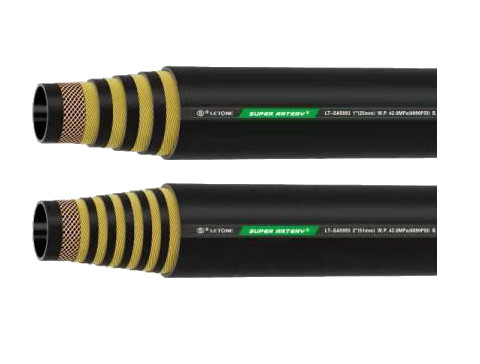

The hose has a Hose Inside Diameter (ID) range of 6.3mm to 51.0mm, which makes it suitable for a wide range of applications. It is also reinforced with four or six layers of spiraled high-tensile steel wire, which provides excellent resistance to high pressures and helps to maintain the hose's shape under extreme conditions. The steel wire reinforcement also helps to prevent the hose from kinking or collapsing under vacuum conditions.
The Steel Wire Spiral Hydraulic Hose is designed to exceed the SAE standard by 60%, which makes it ideal for use in high-pressure applications. The hose can handle pressures of up to 6000 psi, which is significantly higher than the standard SAE pressure rating. This makes it an excellent choice for use in the construction, mining, and oil and gas industries, among others.
The temperature range of the Steel Wire Spiral Hydraulic Hose is -40°C to +121°C, which makes it suitable for use in extreme temperatures. This temperature range ensures that the hose can handle both high and low-temperature applications without cracking or splitting. This makes it an excellent choice for use in industries such as construction, mining, and agriculture, among others.
In summary, the Steel Wire Spiral Hydraulic Hose is a high-quality, high-pressure spiral wire hydraulic hose that is designed to meet the demands of various industries. Its construction with high-tensile steel wire provides excellent strength and durability, while its ability to handle high-pressure applications makes it ideal for use in the construction, mining, and oil and gas industries. Its temperature range also makes it suitable for use in extreme temperatures, making it a versatile and reliable option for various applications.
Also known as Steel Wire Braided Spiral Hydraulic Hose, Spiral Steel Wire Reinforced Hydraulic Hose, Spiraled Steel Wire Hydraulic Hose
| Features | Small Volume Expansion Under Pressure |
| Reinforcement Material | Four Or Six Layers Of Spiraled High-tensile Steel Wire |
| Hose Inside Diameter | 6.3mm - 51.0mm |
| Reinforcement | Four-layer Steel Wire Winding Layer |
| Material | Steel Wire |
| Hose Type | Spiral |
| Standard Length | 50m, 100m, Or Customized |
| High Pressure | Exceed The SAE Standard By 60% |
| Burst Pressure | 140MPa - 340MPa |
| Working Pressure | 35MPa - 85MPa |
Spiraled Steel Wire Hydraulic Hose, Spiral Steel Wire Reinforced Hydraulic Hose
The Spiral Steel Wire Reinforced Hydraulic Hose is designed to function well in extreme temperature conditions, ranging from -40°C to +121°C. The inner tube of NBR tube is resistant to oil, and the hose's working pressure ranges from 35MPa - 85MPa. The hose's inner diameter varies from 6.3mm to 51.0mm, making it suitable for use in different hydraulic systems.

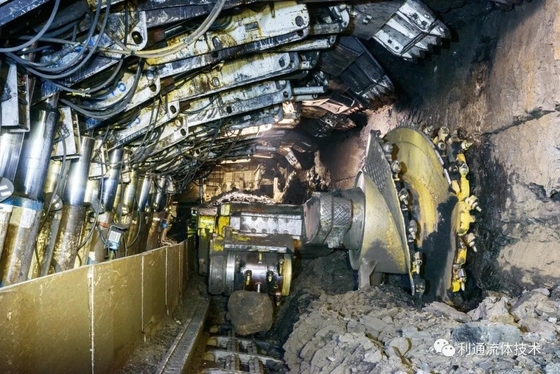

The Spiraled Steel Wire Hydraulic Hose is ideal for use in different occasions and scenarios. It is commonly used in industries that require high-pressure hydraulic systems, such as construction, mining, and agriculture. The hose is also suitable for use in industrial applications that require the transport of oil-based fluids, such as lubricants and hydraulic fluids.
The Spiral Steel Wire Reinforced Hydraulic Hose is also suitable for use in machinery that requires flexible connections. The hose's flexibility allows it to bend and move with equipment, ensuring that it does not break or become damaged during operation. The hose's resistance to temperature changes and oil-based fluids makes it ideal for use in different machinery and equipment.
In summary, the Spiral Steel Wire Reinforced Hydraulic Hose is a high-quality hydraulic hose that is suitable for use in different industrial applications. It is manufactured in China and has a minimum order quantity of 100 meters. The hose is flexible, resistant to temperature changes, and oil-based fluids, making it ideal for use in different machinery and equipment.
Our minimum order quantity is 100 meters, and the price ranges from 1-10 USD. Packaging is done in cartons, and delivery time takes approximately one month. Payment terms are T/T, and we can supply up to 2000000 per month. The Temperature Range for this product is -40°C To +121°C.
Place your order today and customize your Spiral Steel Wire Reinforced Hydraulic Hose to meet your specific needs with LETONE.
The Steel Wire Spiral Hydraulic Hose will be packaged in a durable cardboard box to ensure safe transportation. The hose will be coiled and secured with zip ties to prevent any damage during shipping. The box will also be labeled with product information for easy identification.
Shipping:
The Steel Wire Spiral Hydraulic Hose will be shipped via a reliable and trusted courier service. Shipping times may vary depending on the destination, but we will provide a tracking number so you can track your package's progress. We take great care in packaging and shipping our products to ensure they arrive at their destination in perfect condition.
Q: What is the brand name of this hydraulic hose?
A: The brand name of this hydraulic hose is LETONE.
Q: Where is this hydraulic hose manufactured?
A: This hydraulic hose is manufactured in China.
Q: What is the minimum order quantity for this hydraulic hose?
A: The minimum order quantity for this hydraulic hose is 100 meters.
Q: What is the price range for this hydraulic hose?
A: The price range for this hydraulic hose is between 1-10 USD.
Q: What is the packaging details for this hydraulic hose?
A: The packaging details for this hydraulic hose is a carton.
Q: What is the delivery time for this hydraulic hose?
A: The delivery time for this hydraulic hose is one month.
Q: What are the payment terms for this hydraulic hose?
A: The payment terms for this hydraulic hose are T/T.
Q: What is the supply ability for this hydraulic hose?
A: The supply ability for this hydraulic hose is 2000000 per month.
