Product Details:
|
| Application: | Flexible Line Using For Delivery Water-based, Oil-based, Acid-based And Foam Fracturing Fluids Under High Pressure In Acid, Sand And Hydraulic Fracturing Works | Tube: | UPE |
|---|---|---|---|

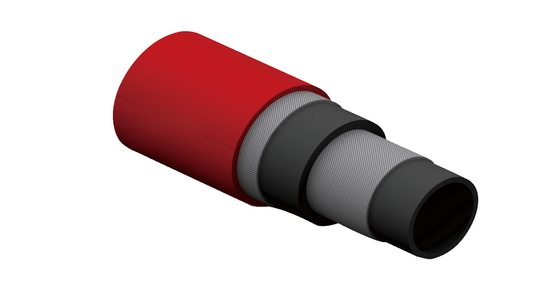

| Reinforcement: | 4 Or 6 Layers Of High Tensile Super Flexible Spiral Steel Wire Or Steel Cable | Cover: | Abrasion And Weather Resistant Synthetic Rubber |
| Temperature Range: | -20°C~+82°C (-4°F〜+179.6°F) | Standard: | API Spec. 7K FSL0 | ABS |

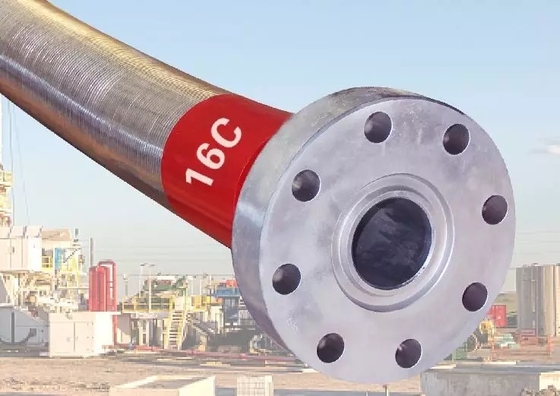

| Connectors: | Integral Union Or Integral Flange | ||
| High Light: | Api 7k Abrasion Resistant Hoses,Spiral Wire Abrasion Resistant Hoses,Api 7k Kelly Hose |
||
| PRESSURE LEVEL | I.D. | O.D. | W.P. | P.P. | Min.B.P. | Min.B.R. |
| psi | in. | mm | psi | psi | psi | mm |
| 10000 Grade E | 2 | 79 | 10000 | 15000 | 22500 | 1000 |
| 2 1/2 | 98 | 10000 | 15000 | 22500 | 1000 | |
| 3 | 117 | 10000 | 15000 | 22500 | 1400 | |
| 3 1/2 | 137 | 10000 | 15000 | 22500 | 1400 | |
| 4 | 156 | 10000 | 15000 | 22500 | 1600 | |
| 15000 Grade E | 2 | 98 | 15000 | 22500 | 33750 | 1200 |
| 3 | 129 | 15000 | 22500 | 33750 | 1500 |
