Product Details:
|
| Tube: | HNBR | Reinforcement: | 4 Or 6 Layers Of High Tensile Super Flexible Spiral Steel Wire Or Steel Cable |
|---|---|---|---|
| Cover: | High Temperature And Fire Resistant Synthetic Rubber (resistant To 704 °C Open Fire For 30 Minutes) | Temperature Range: | -55℃~+150℃（-67℉~+302℉） |
| Standard: | API Spec. 16C FSL0 FSL1 FSL2 FSL3 | ABS | Protective Layer：: | Stainless Steel Armor |
| High Light: | Flexible Choke And Kill Hose,API 16C Rotary Drilling Hose,API 16C Choke And Kill Hose |
||

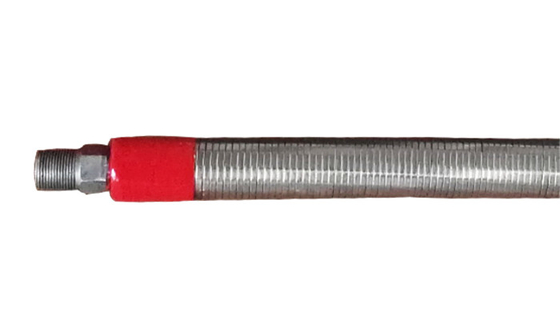

Flexible Choke and Kill Hose is applicable to connection at locations when drill platform, semi-submersible drilling vessel or drilling vessel moves relatively and the installation dimensions of the drill rig subsequently change, and to delivery of oil, gas, mud and other high pressure media (including mainly relief line, blowout control line and choke kill line).
Applicable standard: API 16C and SY/T5323-2004
Protective Layer:stainless steel armor
Parameter:
| PRESSURE LEVEL | I.D. | 0.D. | W.P. | P.P. | Min. B.P. | Min.B.R. |
| psi | in. | mm | psi | psi | psi | mm |
| 5000 | 2 | 95 | 5000 | 7500 | 11250 | 1000 |
| 3 | 126 | 5000 | 7500 | 11250 | 1200 | |
| 4 | 163 | 5000 | 7500 | 11250 | 1400 | |
| 5 | 193 | 5000 | 7500 | 11250 | 1600 | |
| 7500 | 2 | 97 | 7500 | 11250 | 16875 | 1000 |
| 3 | 132 | 7500 | 11250 | 16875 | 1200 | |
| 4 | 178 | 7500 | 11250 | 16875 | 1600 | |
| 5 | 210 | 7500 | 11250 | 16875 | 1800 | |
| 10000 | 2 | 105 | 10000 | 15000 | 22500 | 1200 |
| 3 | 123 | 10000 | 15000 | 22500 | 1600 | |
| 3 1/2 | 160 | 10000 | 15000 | 22500 | 1600 | |
| 4 | 180 | 10000 | 15000 | 22500 | 1800 | |
| 15000 | 2 | 123 | 15000 | 22500 | 33750 | 1400 |
| 3 | 154 | 15000 | 22500 | 33750 | 1600 |
