Product Details:
|
| Tube: | HNBR | Reinforcement: | 4 Or 6 Layers Of High Tensile Super Flexible Spiral Steel Wire Or Steel Cable |
|---|---|---|---|
| Cover: | High Temperature And Fire Resistant Synthetic Rubber (resistant To 704 °C Open Fire For 30 Minutes) | Temperature Range: | -55℃~+150℃（-67℉~+302℉） |
| Standard: | API Spec. 16C FSL0 FSL1 FSL2 FSL3 | ABS | Protective Layer：: | Stainless Steel Armor |
| High Light: | 3 4 Inch Blowout Preventer Hose,6 Layers Api Spec 16d,6 Layers Blowout Preventer Hose |
||
Application:

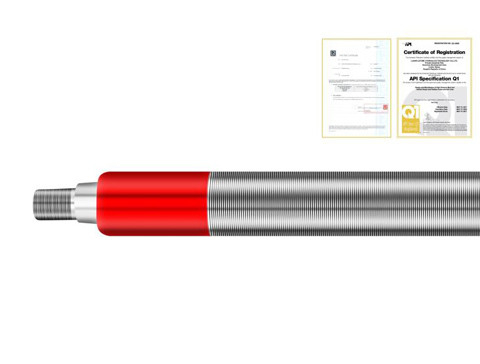

BOP hose works as the connection part when drill platform, semi-submersible drilling vessel or drilling vessel moves relatively and for adjustment of the installation variance of the drilling rig. It transfers oil, gas, mud and other high pressure media. It is mainly used for connection of inner and outer high pressure choke and kill hose and as flexible connection between mud & gas separator and choke manifold.
Features:
high pressure resistance, thermal insulation, flame-retardant, fire resistance, oil resistance, high abrasion resistance inner wall and long operating life.
Fittings:
Swaged fitting, integral vulcanized, integral flange and union are available according to clients' requirements.
Protective Layer: stainless steel armor
Parameter:
| I.D. | W.P. | P.P. | Min. B.P. | Min. B.R. |
| (in.) | (psi) | (psi) | (psi) | (mm) |
| 1/2 | 5000 | 7500 | 15000 | 300 |
| 3/4 | 5000 | 7500 | 15000 | 400 |
| 1 | 5000 | 7500 | 15000 | 500 |
| 1 1/2 | 5000 | 7500 | 15000 | 700 |
| 2 | 5000 | 7500 | 15000 | 800 |
