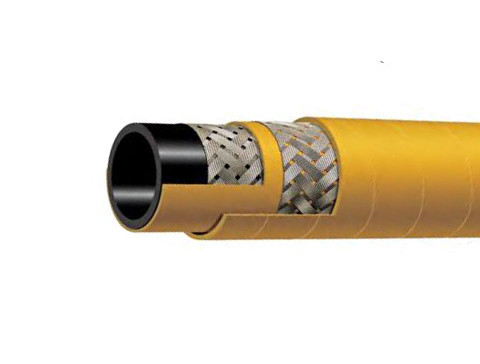

600PSI High Temperature Compressed Air Hose For Mining

600PSI High Temperature Compressed Air Hose For Mining
600PSI High Temperature Compressed Air Hose For Mining

Large Image :  600PSI High Temperature Compressed Air Hose For Mining

Product Details:
Place of Origin: CHINA
Brand Name: LETONE
Model Number: LT802
Payment & Shipping Terms:
Minimum Order Quantity: 100 Meter
Price: 10USD-200USD
Packaging Details: Plastic stretch film or wooden box
Delivery Time: 1 month
Payment Terms: T/T
Supply Ability: Annual output of 1000,000 meters
Contact Now

600PSI High Temperature Compressed Air Hose For Mining

Description
Application: Used In High Pressure And Oil Resistant Working Environments, Suitable For Mining, Quarry, Durable, Long Service Life And High Safety Level Tube: Black Extruded SBR Rubber, RMA Grade A, Resistant To Oil Mist
Reinforcement: High Tension Braided Steel Wire Layer Cover: Yellow SBR/NBR Rubber, Abrasion Resistant, Oxidizing, Fire Resistant And Aromatic Hydrocarbon Materials
Working Pressure: Constant Pressure 40Bar (600PSI) Temperature Range: -40°C (-40°F) To +120°C (+242°F)
High Light:

600PSI High Temperature Compressed Air Hose

,

High Temperature Compressed Air Hose For Mining

,

600PSI compressor air line hose

LT802 600PSI high temperature oil resistant braided steel wire air hose
High pressure air hose is mainly used as the connector between air compressor and other device. It is widely used in underwater diving, for example scuba diving. It is an important part of diving dress and other types of surface supplied diving equipment. In the other hand, air hoses can be used for air brakes between tractors and semi-trailers. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality black and smooth synthetic rubber, mainly NBR, which is resistant to abrasion, corrosion and oils. The reinforcement is made from multiple layers of high strength synthetic fiber, making the hose have solid structure. The cover is made from high quality black and smooth synthetic rubber, mainly chloroprene rubber, which is resistant to fire, abrasion, corrosion, oils, weather, ozone and aging. The hose has a long service life as a result.

Application: Used in high pressure and oil resistant working environments, suitable for mining, quarry, durable, long service life and high safety level
Tube: Black extruded SBR rubber, RMA grade A, resistant to oil mist
Reinforcement: High tension braided steel wire layer
Cover: Yellow SBR/NBR rubber, abrasion resistant, oxidizing, fire resistant and aromatic hydrocarbon materials
Working pressure:Constant pressure 40Bar (600PSI)
Temperature range:-40°C (-40°F) to +120°C (+242°F)
Parameter

Series I.D. (in.) I.D. (mm) O.D. (in.) O.D. (mm) MaxRec.W.P. (PSI) Min.B.R Weight (kg/m)
LT802-200 2 51 2.52 64 600 10 2.28
LT802-250 21/2 63 3.03 77 600 121/2 2.87
LT802-300 3 76 3.54 90 600 15 3.54



222
