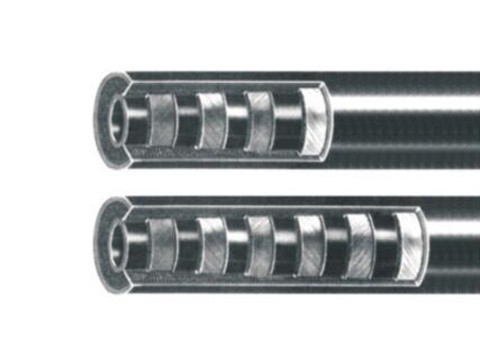

Artery Wire Spiral Hydraulic Hose NBR Tube For Harsh Conditions

It is an extremely flexible hose designed to operate at high working pressures and finds its applications on modern construction, marine, mining, and forestry equipment

A hose consists of three basic components:
• The tube is made from several different rubber compounds and composites that must chemically resist
the fluid being conveyed. The tube must also resist corrosion, deterioration and the effects of high or
low temperatures.
• The reinforcement must resist fluid pressures, pressure spikes and hose bursts. It determines the
working pressure of the hose. The reinforcement can be a braid or spiral wrap and can be made of
natural fibers, synthetic materials or steel wire. Some hoses use a combination of fiber and steel wire or
multiple layers of steel wire braids or spirals.
• The cover is designed to protect the tube and reinforcement from heat, abrasion, corrosion and
environmental deterioration. The cover can be made from synthetic rubber, fiber braids or a
combination of both depending on the application.

Application: suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
Tube: Inner tube of NBR tube
Reinforcement: 4 layers or 6 layers of interlaced high-strength steel wire
Cover: Narrow cloth black non-stripping outer rubber
Temperature Range: -40℃~+121℃ (-40℉~+250℉)
Feature: Oil, heat and aging resistant,high compression resistance,no less than one million times pulses,Weather resistant for more than 3 years
