Product Details:
|

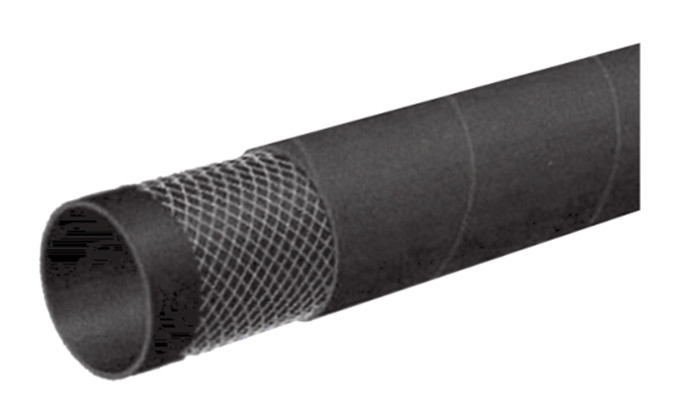

| Applications: | Radiator Hose | Tube: | Black EPDM |
|---|---|---|---|
| Reinforcement: | High Tensile Textile Cords | Cover: | Black EPDM-heat, Abrasion And Ozone Resistant |
| Working Pressure: | 5 Bar (75 PSI) | Temperature Range: | -40° F (-40° C) To 248° F(+120° C) |
| High Light: | 75 PSI Steel Braided Radiator Hose,L3.81m Industrial Steam Hose,L3.81m Steel Braided Radiator Hose |
||
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | Max.W.P.(psi) | L. (m) | W. (kg/m) |
| LT1003-050X12.6 | 1/2 | 13 | 0.83 | 21 | 75 | 3.81 | 0.28 |
| LT1003-050X200 | 1/2 | 13 | 0.83 | 21 | 75 | 60.96 | 0.28 |
| LT1003-062X12.6 | 5/8 | 16 | 0.94 | 24 | 75 | 3.81 | 0.33 |
| LT1003-062X200 | 5/8 | 16 | 0.94 | 24 | 75 | 60.96 | 0.33 |
| LT1003-071X12.6 | 11/16 | 18 | 1.02 | 26 | 75 | 3.81 | 0.36 |
| LT1003-071X200 | 11/16 | 18 | 1.02 | 26 | 75 | 60.96 | 0.36 |
| LT1003-078X12.6 | 13/16 | 20 | 1.10 | 28 | 75 | 3.81 | 0.39 |
| LT1003-078X200 | 13/16 | 20 | 1.10 | 28 | 75 | 60.96 | 0.39 |
| LT1003-087X12.6 | 7/8 | 22 | 1.18 | 30 | 75 | 3.81 | 0.42 |
| LT1003-087X200 | 7/8 | 22 | 1.18 | 30 | 75 | 60.96 | 0.42 |
| LT1003-100X12.6 | 1 | 25 | 1.30 | 33 | 75 | 3.81 | 0.48 |
| LT1003-100X200 | 1 | 25 | 1.30 | 33 | 75 | 60.96 | 0.48 |
| LT1003-112X12.6 | 11/8 | 28 | 1.42 | 36 | 75 | 3.81 | 0.51 |
| LT1003-112X200 | 11/8 | 28 | 1.42 | 36 | 75 | 60.96 | 0.51 |
| LT1003-118X12.6 | 13/16 | 30 | 1.50 | 38 | 75 | 3.81 | 0.55 |
| LT1003-118X200 | 13/16 | 30 | 1.50 | 38 | 75 | 60.96 | 0.55 |
| LT1003-125X12.6 | 11/4 | 32 | 1.57 | 40 | 75 | 3.81 | 0.58 |
| LT1003-125X200 | 11/4 | 32 | 1.57 | 40 | 75 | 60.96 | 0.58 |
| LT1003-137X12.6 | 13/8 | 35 | 1.69 | 43 | 75 | 3.81 | 0.62 |
| LT1003-137X200 | 13/8 | 35 | 1.69 | 43 | 75 | 60.96 | 0.62 |
| LT1003-150X12.6 | 11/2 | 38 | 1.89 | 48 | 75 | 3.81 | 0.85 |
| LT1003-150X200 | 11/2 | 38 | 1.89 | 48 | 75 | 60.96 | 0.85 |
| LT1003-157X12.6 | 19/16 | 40 | 1.97 | 50 | 75 | 3.81 | 0.89 |
| LT1003-157X200 | 19/16 | 40 | 1.97 | 50 | 75 | 60.96 | 0.89 |
| LT1003-162X12.6 | 15/8 | 42 | 2.05 | 52 | 75 | 3.81 | 0.94 |
| LT1003-162X200 | 15/8 | 42 | 2.05 | 52 | 75 | 60.96 | 0.94 |
| LT1003-175X12.6 | 13/4 | 45 | 2.17 | 55 | 75 | 3.81 | 0.98 |
| LT1003-175X200 | 13/4 | 45 | 2.17 | 55 | 75 | 60.96 | 0.98 |
| LT1003-189X12.6 | 17/8 | 48 | 2.28 | 58 | 75 | 3.81 | 1.04 |
| LT1003-189X200 | 17/8 | 48 | 2.28 | 58 | 75 | 60.96 | 1.04 |
| LT1003-200X12.6 | 2 | 51 | 2.40 | 61 | 75 | 3.81 | 1.12 |
| LT1003-200X200 | 2 | 51 | 2.40 | 61 | 75 | 60.96 | 1.12 |
| LT1003-218X12.6 | 23/16 | 55 | 2.56 | 65 | 75 | 3.81 | 1.19 |
| LT1003-225X12.6 | 21/4 | 57 | 2.64 | 67 | 75 | 3.81 | 1.22 |
| LT1003-238X12.6 | 23/8 | 60 | 2.76 | 70 | 75 | 3.81 | 1.28 |
| LT1003-250X12.6 | 21/2 | 63 | 2.87 | 73 | 75 | 3.81 | 1.34 |
| LT1003-275X12.6 | 23/4 | 70 | 3.15 | 80 | 75 | 3.81 | 1.44 |
| LT1003-300X12.6 | 3 | 76 | 3.39 | 86 | 75 | 3.81 | 1.55 |
| LT1003-315X12.6 | 31/8 | 80 | 3.54 | 90 | 75 | 3.81 | 1.64 |
| LT1003-354X12.6 | 39/16 | 90 | 4.02 | 102 | 75 | 3.81 | 2.02 |
| LT1003-400X12.6 | 4 | 102 | 4.49 | 114 | 75 | 3.81 | 2.26 |
| LT1003-450X12.6 | 41/2 | 116 | 5.00 | 127 | 75 | 3.81 | 2.51 |
| LT1003-500X12.6 | 5 | 127 | 5.55 | 141 | 75 | 3.81 | 3.21 |
