Product Details:
|
Application: | Flexible Connection Between The Upper End Of The Standpipe And The Top Drive/swivel And Between The Pump And The Lower End Of The Standpipe For Pumping Mud At High | Tube: | NR&SBRsythentic Rubber/HNBR/UPE |
---|---|---|---|
Reinforcement: | 2-6 Layers Of High Tensile Super Flexible Spiral Steel Wire Or Steel Cable | Cover: | Abrasion And Weather Resistant Synthetic Rubber |

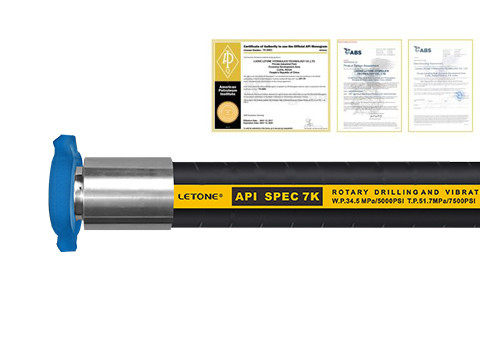

Standard: | API Spec. 7K FSL 1 FSL 2 | ABS | Temperature Range: | -20℃~+82℃(-4℉~+179.6℉) -55℃~+150℃(-67℉~+302℉) |

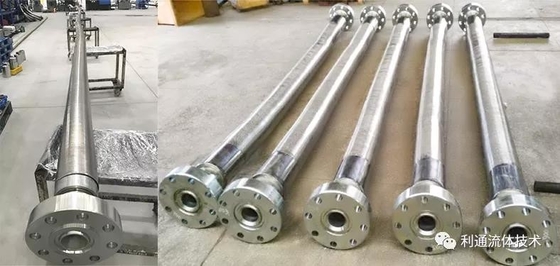

Connectors: | Integral Union Or Integral Flange | ||
High Light: | API 7K Rotary Drilling Hose,6 Layers Rotary Drilling Hose,API 7K Vibrator Hose |
PRESSURE LEVEL | I.D. | O.D. | W.P. | P.P. | Min.B.P. | Min.B.R. |
psi | in. | mm | psi | psi | psi | mm |
1500 A级Grade A | 2 | 68 | 1500 | 2250 | 3750 | 800 |
2 1/2 | 84 | 1500 | 2250 | 3750 | 800 | |
2000 Grade B | 2 | 68 | 2000 | 3000 | 5000 | 800 |
2 1/2 | 84 | 2000 | 3000 | 5000 | 800 | |
3 | 97 | 2000 | 3000 | 5000 | 950 | |
3 1/2 | 113 | 2000 | 3000 | 5000 | 1000 | |
4 | 127 | 2000 | 3000 | 5000 | 1000 | |
5 | 157 | 2000 | 3000 | 5000 | 1200 | |
6 | 183 | 2000 | 3000 | 5000 | 1300 | |
4000 Grade C | 2 | 72 | 4000 | 6000 | 10000 | 800 |
2 1/2 | 87 | 4000 | 6000 | 10000 | 800 | |
3 | 102 | 4000 | 6000 | 10000 | 1000 | |
3 1/2 | 119 | 4000 | 6000 | 10000 | 1200 | |
4 | 132 | 4000 | 6000 | 10000 | 1200 | |
5 | 162 | 4000 | 6000 | 10000 | 1400 | |
6 | 194 | 4000 | 6000 | 10000 | 1500 | |
5000 D级Grade D | 2 | 75 | 5000 | 7500 | 12500 | 800 |
2 1/2 | 90 | 5000 | 7500 | 12500 | 800 | |
3 | 104 | 5000 | 7500 | 12500 | 1000 | |
3 1/2 | 121 | 5000 | 7500 | 12500 | 1200 | |
4 | 134 | 5000 | 7500 | 12500 | 1200 | |
5 | 167 | 5000 | 7500 | 12500 | 1400 | |
6 | 196 | 5000 | 7500 | 12500 | 1600 | |
7500 Grade E | 2 | 77 | 7500 | 11250 | 18750 | 900 |
2 1/2 | 94 | 7500 | 11250 | 18750 | 1000 | |
3 | 110 | 7500 | 11250 | 18750 | 1000 | |
3 1/2 | 128 | 7500 | 11250 | 18750 | 1200 | |
4 | 150 | 7500 | 11250 | 18750 | 1400 | |
5 | 183 | 7500 | 11250 | 18750 | 1600 | |
6 | 212 | 7500 | 11250 | 18750 | 1600 |
