Product Details:
|

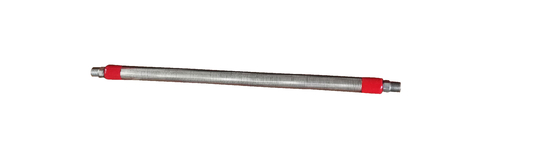

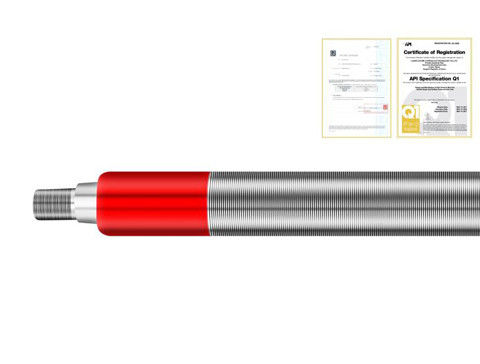

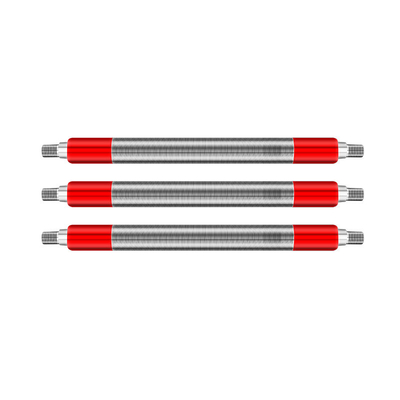

| Application: | Hydraulic Control Line For Remotely Control The Blowout Preventer (BOP) At High Pressure | Tube: | NBR |
|---|---|---|---|

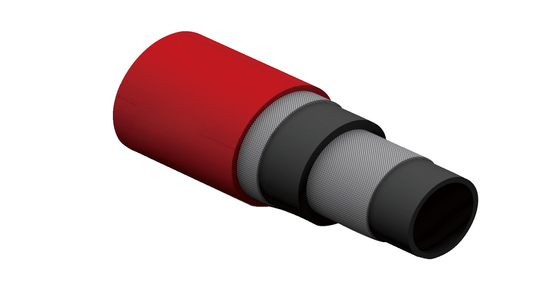

| Reinforcement: | 4 Layers Of High Tensile Super Flexible Spiral Steel Wire | Cover: | High Temperature And Fire Resistant Synthetic Rubber |
| Protective Layer: | Stainless Steel Armor | Standard: | API Spec. 16D | Lloyds |
| Temperature Range: | -45°C~+100°C (-49°F~+212°F) Fire Resistance Meets API Spec. 16D, 704°CX5min | ||
| High Light: | API 16D BOP Control Hose,Wire Reinforced BOP Control Hose,API 16D bop hose |
||
| I.D. | W.P. | P.P. | Min. B.P. | Min. B.R. |
| (in.) | (psi) | (psi) | (psi) | (mm) |
| 1/2 | 5000 | 7500 | 15000 | 300 |
| 3/4 | 5000 | 7500 | 15000 | 400 |
| 1 | 5000 | 7500 | 15000 | 500 |
| 1 1/2 | 5000 | 7500 | 15000 | 700 |
| 2 | 5000 | 7500 | 15000 | 800 |
