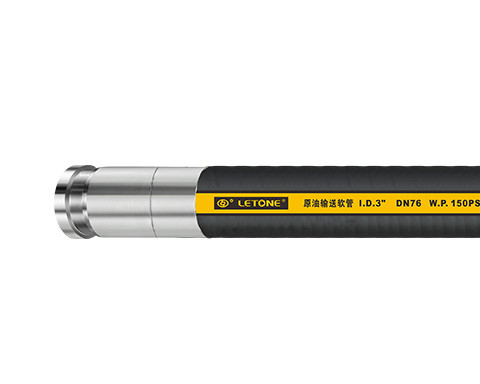

PTFE Multifunctional API Q1 crude oil hose for Conveying

PTFE Multifunctional API Q1 crude oil hose for Conveying
PTFE Multifunctional API Q1 crude oil hose for Conveying PTFE Multifunctional API Q1 crude oil hose for Conveying

Large Image :  PTFE Multifunctional API Q1 crude oil hose for Conveying

Product Details:
Place of Origin: CHINA
Brand Name: LETONE
Certification: API PTFE
Model Number: LT304 PTFE multifunctional crude oil conveying hose
Payment & Shipping Terms:
Minimum Order Quantity: 10 Meter
Price: 100USD-1000USD
Packaging Details: Plastic stretch film
Delivery Time: Within a month
Payment Terms: T/T
Supply Ability: Annual output of 10,000 meters

PTFE Multifunctional API Q1 crude oil hose for Conveying

Description
Application: PTFE Multifunctional Crude Oil Conveying Hose Tube: PTFE
Reinforcement: Spiralled High Tensile Textile Cord And Highly Flexibile Steel Helix Wires Cover: Black CR Rubber
Temperature Range: -30℃~+100℃ (-22℉~+212℉) Hoses With Multiple Pressures And Sizes Can Be Customized
High Light:

API Q1 Crude Oil Hose

,

PTFE Multifunctional Crude Oil Hose

,

PTFE crude oil rubber hose

LT304 PTFE multifunctional crude oil conveying hose

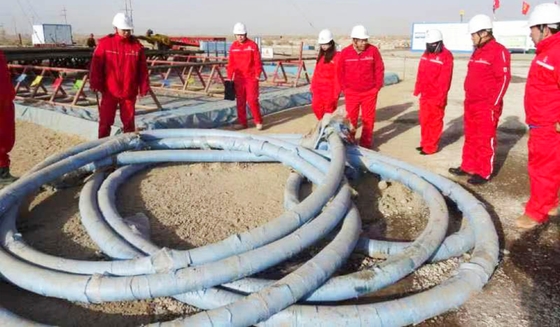

Letone oil drilling hose has passed the American Petroleum Institute API Q1 quality management system certification (API 7K & API 16C & API 16D), API 7K, API 16C product certification, and American Bureau of Shipping ABS product design approval (API 7K & API 16C) ), ABS factory license, ABS form approval, etc. The product has the characteristics of high pressure, equal diameter, light weight, etc., and is widely used in land and offshore oil drilling projects.
Application:hydraulic control line for remotely control the blowout preventer (BOP) at high pressure
Tube:NBR
Reinforcement:4 layers of high tensile super flexible spiral steel wire
Cover:high temperature and fire resistant synthetic rubber
Protective Layer:stainless steel armor
Temperature Range:-45°C~+100°C (-49°F~+212°F) Fire resistance meets API Spec. 16D, 704°CX5min
Standard:API Spec. 16D | Lloyds
Parameter
Hose inner diameter Outer diameter of hose O.D. Maximum working pressure MaxRec.WP Min.B.R WeightWeigt
in. mm in. mm Psi mm kg/m
2 51 2.4 65 350 381 1.25
21/2 63 2.95 75 350 508 1.79
3 76 3.46 88 350 508 2.14
31/2 90 4.02 102 350 635 2.71
4 102 4.49 114 350 762 3.02
5 127 5.55 141 350 889 4.73
6 152 6.54 166 350 1270 5.97

Welcome to LETONE

From 2003, Letone has always been committed to manufacturing rubber hose for 14 years, which provides high-grade and high-end rubber hose for the field of spaceflight and maritime industry, petroleum industry and highway, and PLA etc. Just as careful and elaborate rubber hose, LETONE has now become a high-tech enterprise integrating research, production, sales and services after years of steady development, shining brilliantly in the international market as an iconic enterprise among China's rubber hose.

More about LETONE

80,000 m2 of Production Bases

By 2016, Letone has built 4 world-class manufacture bases which cover a total area of over 80,000 m2, and accomplished an annual production value of RMB 5 billion.

More about Production Strength

Globalization & Localization

To offer you more timely service and solve your puzzles during operation of production lines, we push out the strategy of "Globalization & Localization". Currently, we have set 4 overseas offices distributed over different continents. If there is any need, we can "knock your door" at once. It is a strategy just right for you.

Searching Overseas Offices

What Do We Do?

From the clear service list, you can accurately know about which services Letone will providefor you…

More about Businesses

Service You Can Rely On

Service is the soul of a brand. So, LETONE integrates service into each segment of the life cycle of every order from pre-sale, in-sale until after-sale, and offers "consultancy" and "manager" service.
