Product Details:
|
| Applications: | Suitable For Conveying Petroleum-based Hydraulic Oil, Lubricating Oil, Gasoline, Fuel Oil, Water And Air, Etc | Tube: | Black Oil-resistant Synthetic Rubber |
|---|---|---|---|

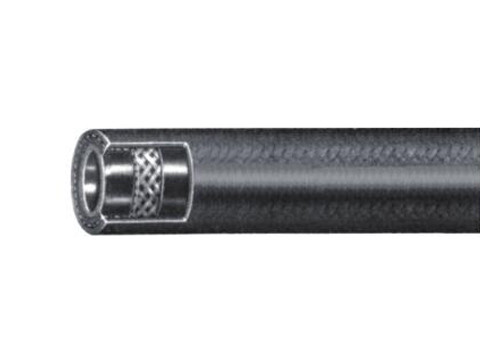

| Reinforcement: | One Layer Of Braided High Strength Steel | Cover: | One Layer Of Braided Dipping Fiber |
| Temperature Range: | -40 °C To + 100 °C (-40 °F To + 212 °F) | Brand: | LETONE |
| High Light: | SAE 100r5 Hydraulic Hose,48 Dash Hydraulic Rubber Hose,SAE 100r5 Hydraulic Rubber Hose |
||
Parameter
| SIZE(Dash) | SIZE(in.) | I.D.(mm) | O.D.(mm) | Max.W.P. | Min.B.P. | Min.B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 3 | 3/16 | 4.8 | 5.5 | 13.7 | 21 | 84 | 75 |
| 4 | 1/4 | 6.4 | 7.2 | 15.3 | 21 | 84 | 85 |
| 5 | 5/16 | 7.9 | 8.7 | 17.6 | 15.7 | 62.8 | 100 |
| 6 | 3/8 | 10.3 | 11.1 | 20.0 | 14 | 56 | 115 |
| 8 | 1/2 | 12.7 | 13.7 | 24.0 | 12.2 | 48.8 | 140 |
| 10 | 5/8 | 15.9 | 17.0 | 28.0 | 10.5 | 42 | 165 |
| 12 | 7/8 | 22.2 | 23.3 | 32.2 | 5.6 | 22.4 | 185 |
| 16 | 1 1/8 | 28.6 | 29.8 | 38.9 | 4.3 | 17.2 | 230 |
| 20 | 1 3/8 | 34.9 | 36.1 | 45.2 | 3.5 | 14.0 | 265 |
| 32 | 1 3/4 | 46.0 | 47.2 | 57.6 | 2.4 | 9.6 | 335 |
| 40 | 2 3/8 | 60.3 | 61.9 | 74.2 | 2.4 | 9.6 | 610 |
| 48 | 3 | 76.2 | 77.8 | 91.7 | 1.4 | 5.6 | 840 |
