Product Details:
|
| Applications: | Suitable For The Automobile Manufacturing Industry | Tube: | A Nylon Isolation Layer And A Layer Of Black Synthetic Rubber |
|---|---|---|---|
| Reinforcement: | A Layer Of Fiber Weave | Cover: | Black Heat-resistant, Ozone-resistant, Wear-resistant Synthetic Rubber |
| Temperature Range: | -40℃ To +125℃ (-40℉ To +257℉) | Brand: | LETONE |
| High Light: | R134a Auto Air Conditioning Hoses,13 Dash Automotive Ac Hose,13 Dash Auto Air Conditioning Hoses |
||

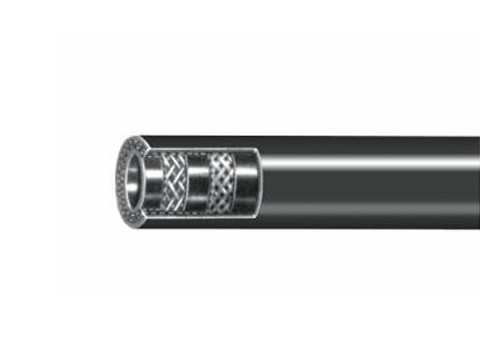

LT789 AUTOMOTIVE A/C HOSE SERIES
Parameter
| LT789A Series | LT789B Series | |||||
| SIZE(Dash) | I.D. (mm) | O.D. (mm) | SIZE(in.) | I.D. (mm) | O.D. (mm) | |
| 8.0 | Φ8±0.3 | Φ15.2±0.4 | 5/16 | Φ8.2±0.4 | Φ19.0±0.5 | |
| 11.2 | Φ11.2±0.3 | Φ18.4±0.4 | 13/32 | Φ10.5±0.4 | Φ23.0±0.8 | |
| 13.0 | Φ13.0±0.3 | Φ21.0±0.4 | 1/2A | Φ13.0±0.5 | Φ25.4±0.8 | |
| 15.2A | Φ15.2±0.4 | Φ24.5±0.5 | 1/2B | Φ13.0±0.5 | Φ23.0±0.8 | |
| 15.2B | Φ15.2±0.4 | Φ23±0.5 | 1/2C | Φ13.0±0.5 | Φ22.4±0.8 | |
| 5/8 | Φ16.1±0.5 | Φ28.6±0.8 | ||||
| LT789C Series | LT789D Series | |||||
| SIZE(in.) | I.D.(mm) | O.D.(mm) | SIZE(in.) | I.D.(mm) | O.D.(mm) | |
| 5/16 | Φ8.2±0.4 | Φ14.7±0.5 | 3/4 | Φ19.4±0.5 | Φ28.4±0.5 | |
| 13/32 | Φ10.5±0.4 | Φ17.3±0.5 | 7/8 | Φ22.7±0.5 | Φ32.8±0.5 | |
| 1/2 | Φ13.0±0.5 | Φ19.4±0.5 | 9/8 | Φ29.0±0.5 | Φ40.2±0.5 | |
| 5/8 | Φ16.1±0.5 | Φ23.6±0.5 | ||||
