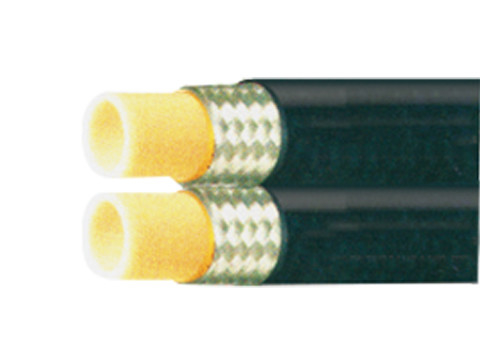

Fiber Braided Reinforced Rubber Hose For Hydraulic Elevators

Fiber Braided Reinforced Rubber Hose For Hydraulic Elevators
Fiber Braided Reinforced Rubber Hose For Hydraulic Elevators

Large Image :  Fiber Braided Reinforced Rubber Hose For Hydraulic Elevators

Product Details:
Place of Origin: CHINA
Brand Name: LETONE
Certification: EN854-2TE-3TE
Model Number: LT792
Payment & Shipping Terms:
Minimum Order Quantity: 100 Meter
Price: 1USD-20USD
Packaging Details: Plastic stretch film or carton
Delivery Time: Within a month
Payment Terms: T/T
Supply Ability: Annual output of 5000,000 meters
Contact Now

Fiber Braided Reinforced Rubber Hose For Hydraulic Elevators

Description
Applications: It Is Suitable For Conveying Petroleum-based Hydraulic Oil Inner Tube: Nylon
Reinforcement: One Or Two Layers Of Synthetic Fiber Braid Outer Layer: Oil-resistant, Aging-resistant, Weather-resistant Black Polyurethane
Temperature Range: -40℃ ~ +100℃（-40℉ ~ +212℉） Brand: LETONE
High Light:

Fiber braided Reinforced Rubber Hose

,

Hydraulic Elevators Reinforced Rubber Hose

LT792 Fiber braided double resin hose

Applications: It is suitable for conveying petroleum-based hydraulic oil and water-based hydraulic oil. It can be used as a lubrication line and a blowout preventer control line. It is widely used in hydraulic elevators and agricultural and construction machinery
Inner Tube: nylon
Reinforcement: One or two layers of synthetic fiber braid
Outer Layer: Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range: -40℃ ~ +100℃(-40℉ ~ +212℉)

Parameter

I.D. O.D. W.P. W.P. MIN.B.P. W.T.
Dash In. mm mm MPa psi MPa psi mm g/m
-4 1/4 6.3 12.7 25 3625 100 14500 50 220
-5 5/16 7.9 14.3 21 3045 84 12180 50 250
-6 3/8 9.5 18 25 3625 100 14500 100 420
-8 1/2 12.7 19.8 16 2320 64 9280 100 400

Research and development strength
Market demands have increased rapidly with the good reputation built. The 200,000 square meters Letone Fluid Intelligent Technology Industrial Park has been fully put into production in October 2019. Letone now has 40 high-speed steel wire braiders, 10 steel wire spiral machines, 6 industrial hose production equipments, and 60 fluid connector product equipments and two automatic rubber compound production lines service in house. Meanwhile, Letone is capable to produce rubber compounds 15,000 tons per year, rubber seals and other rubber products 20 million pieces per year,and the annual production capacity of hydraulic hoses and industrial hoses (petroleum, chemical, F&B) has increased to 40 million meters. By 2024, The production capacity of hydraulic hoses and industrial hoses (petroleum, chemical, F&B) is forecasted to increase to 120 million meters, rubber compounds will jump to 35,000 tons, rubber seals will reach millions of pieces, and fluid connectors will increase to 50 million pieces, the output value will boost to RMB 2.5 billion.

 222






Tag:

SAE 100r5 Hydraulic Hose,

48 Dash Hydraulic Rubber Hose,

SAE 100r5 Hydraulic Rubber Hose
