Double Resin Wire Braided Hose For Agricultural Machinery

Double Resin Wire Braided Hose For Agricultural Machinery
Double Resin Wire Braided Hose For Agricultural Machinery

Large Image :  Double Resin Wire Braided Hose For Agricultural Machinery

Product Details:
Place of Origin: CHINA
Brand Name: LETONE
Certification: EN854-2TE-3TE
Model Number: LT793
Payment & Shipping Terms:
Minimum Order Quantity: 100 Meter
Price: 1USD-20USD
Packaging Details: Plastic stretch film or carton
Delivery Time: Within a month
Payment Terms: T/T
Supply Ability: Annual output of 5000,000 meters
Contact Now

Double Resin Wire Braided Hose For Agricultural Machinery

Description
Applications: It Is Suitable For Conveying Petroleum-based Hydraulic Oil Inner Tube: Nylon
Reinforcement: One Or Two Layers Of Steel Wire Braid Outer Layer: Oil-resistant, Aging-resistant, Weather-resistant Black Polyurethane
Temperature Range: -40℃ ~ +100℃（-40℉ ~ +212℉） Brand: LETONE
High Light:

double resin wire braided hose

,

Agricultural Machinery Wire Braided Hose

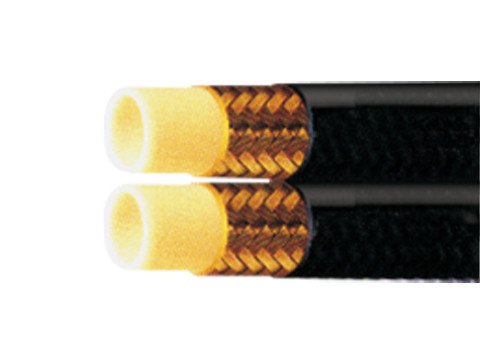

LT793 Steel wire braided double resin hose

Applications: It is suitable for conveying petroleum-based hydraulic oil and water-based hydraulic oil. It can be used as a lubrication line and a blowout preventer control line. It is widely used in hydraulic elevators and agricultural and construction machinery
Inner Tube: nylon
Reinforcement: One or two layers of steel wire braid
Outer Layer: Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range: -40℃ ~ +100℃(-40℉ ~ +212℉)

Parameter

I.D. O.D. W.P. W.P. MIN.B.P. W.T.
Dash In. mm mm MPa psi MPa psi mm g/m
-4 1/4 6.3 12.7 27.5 3990 110 15960 40 360
-5 5/16 7.9 14.3 25 3625 100 14500 40 430
-6 3/8 9.5 18 22.5 3260 90 13040 50 480
-8 1/2 12.7 19.8 18.5 2680 74 10720 70 620



About us
Luohe Letone Technology Co., Ltd. has 18 years of history in the production, research and development and sales of rubber hoses and fluid connectors. It is an industry-recognized high-quality rubber hose manufacturing and service company. With stable product quality and good reputation, it has won the honorary title of "Top Ten Chinese Rubber Hose Enterprises" by the Rubber Hose Tape Branch of China Rubber Industry Association for eight consecutive years.　

The company has 400 employees, including 80 R&D teams, 55 professors, doctoral tutors, masters and above technical personnel, 16 provincial and prefecture-level scientific research projects have been completed, 14 invention patents, 17 utility model patents, 9 provincial scientific and technological achievements. Litong has established a CNAS certification laboratory —— Henan Province High Pressure Rubber Hose Engineering Technology Research Center, and jointly established Litong Qingdao Research Institute with Qingdao University of Science and Technology.

 222
