Product Details:
|

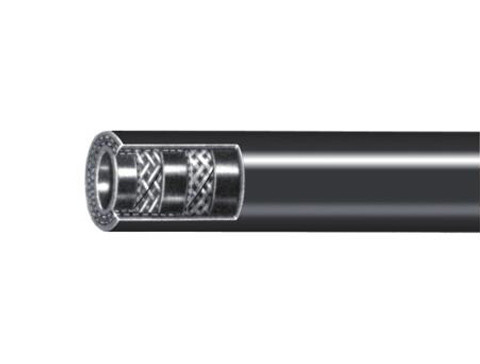

| Tube: | Black Oil-resistant Synthetic Rubber | Reinforcement: | Two Layers Of Woven Fiber |
|---|---|---|---|
| Cover: | Black Oil-resistant, Weather-resistant, Wear-resistant Synthetic Rubber | Temperature Range: | -40 °C To + 100℃ (-40°F To + 212°F) |
| Applications: | Suitable For Conveying Petroleum-based Hydraulic Oil, Lubricating Oil, Gasoline, Fuel Oil, Water And Air, Etc | ||
| High Light: | Woven Fiber Reinforced Rubber Hose,SAE 100R3 Reinforced Rubber Hose,SAE 100R3 Wire Reinforced Tubing |
||
| SIZE(Dash) | SIZE(in.) | I.D.(mm) | O.D.(mm) | Max.W.P. | Min.B.P.. | MinB.R.. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 3 | 3/16 | 4.5 | 5.4 | 13.5 | 10.5 | 42 | 75 |
| 4 | 1/4 | 6.1 | 7.0 | 15.1 | 8.7 | 34.8 | 75 |
| 5 | 5/16 | 7.6 | 8.5 | 18.3 | 8.4 | 33.6 | 100 |
| 6 | 3/8 | 9.2 | 10.1 | 19.8 | 7.8 | 31.2 | 100 |
| 8 | 1/2 | 12.4 | 13.5 | 24.6 | 7 | 28 | 125 |
| 10 | 5/8 | 15.6 | 16.7 | 27.8 | 6.1 | 24.4 | 140 |
| 12 | 3/4 | 18.7 | 19.8 | 32.5 | 5.2 | 20.8 | 150 |
| 16 | 1 | 25.1 | 26.2 | 39.3 | 3.9 | 15.6 | 205 |
| 20 | 1 1/4 | 31.4 | 32.9 | 46.0 | 2.6 | 10.4 | 250 |
