Product Details:
|

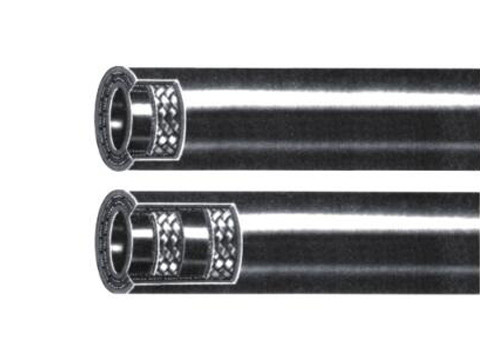

| Tube: | Black Oil-resistant Synthetic Rubber | Reinforcement: | One Or More Layers Of Woven Fiber |
|---|---|---|---|
| Cover: | Black Oil-resistant, Weather-resistant, Wear-resistant Synthetic Rubber | Temperature Range: | -40 °C To + 100 °C (-40 °F To + 212 °F) |
| Brand: | LETONE | Applications: | Medium-pressure Hose, Suitable For Conveying Petroleum-based Hydraulic Oil, Crude Oil, Fuel Oil, Lubricating, Synthetic Fat-based Oil, Emulsified Oil, Air And Water, Etc., Suitable For Railway Systems |
| High Light: | EN854-2TE-3TE Oil Return Hose,EN854 Oil Return Hose,Medium Pressure Oil Return Hose |
||
Parameter
| SIZE(Dash) | SIZE(in.) | I.D.(mm) | O.D.(mm) | Max.W.P. | Min.B.P. | Min.B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 4 | 1/4 | 5.9 | 6.9 | 14.2 | 7.5 | 30 | 40 |
| 5 | 5/16 | 7.4 | 8.4 | 15.7 | 6.8 | 27.2 | 50 |
| 6 | 3/8 | 9.0 | 10.0 | 17.3 | 6.3 | 25.2 | 60 |
| 8 | 1/2 | 12.1 | 13.3 | 20.7 | 5.8 | 23.2 | 70 |
| 10 | 5/8 | 15.3 | 16.5 | 24.9 | 5.0 | 20.0 | 90 |
| 12 | 3/4 | 18.2 | 19.8 | 28.0 | 4.5 | 18.0 | 110 |
| 16 | 1 | 24.6 | 26.2 | 35.9 | 4.0 | 16.0 | 130 |
| 20 | 1 1/4 | 30.8 | 32.8 | 44.5 | 3.5 | 14.0 | 140 |
